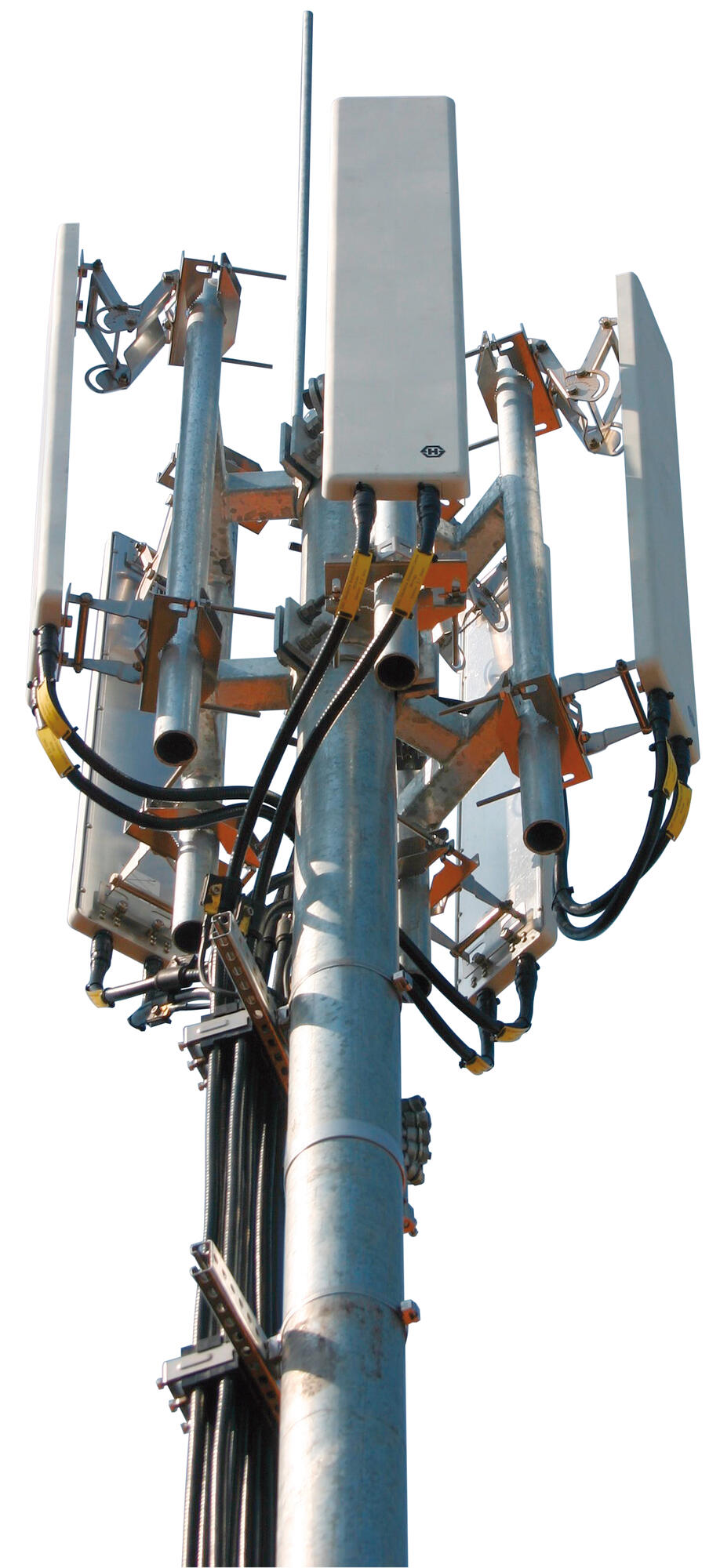

FTTA kablingssystem

HUBER+SUHNER MASTERLINE Classic

• Features
  • Pre-assembled „plug & play“ cabling system
  • Ruggedised design with robust pulling tube Outdoor and indoor with high flame resistance
  • Loose tube cables with up to 48 fibers, rodent protected and UV resistant and CPR compliant
  • Both sides terminated with LC uniboot connectors
  • Breakouts numbered for easy channel identification
  • Easy and time-saving installation
  • Each system factory tested

• Physical Characteristics

  • 12, 24, 36 or 48 fiber
  • LC connectors
  • Cable diameter 7mm (12/24 fiber) 9.6mm (36/48 fiber)
  • Outer diameter (Protection tube / pulling eye) 36mm (50mm / 48 fiber)



• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP67, when installed with FTTA box
  • Halogen-free / IEC 60754-1
  • Fire propagation / IEC 60332-1 and IEC 60332-3-25



• Compliance Approvals

  • CPR compliant / class Dca s1a, d0, a1

• Vælg længde:

HUBER+SUHNER MASTERLINE Extreme

• Features
  • Pre-assembled „plug & play“ cabling system
  • Terminated with Q-ODC extension connectors on RRH side

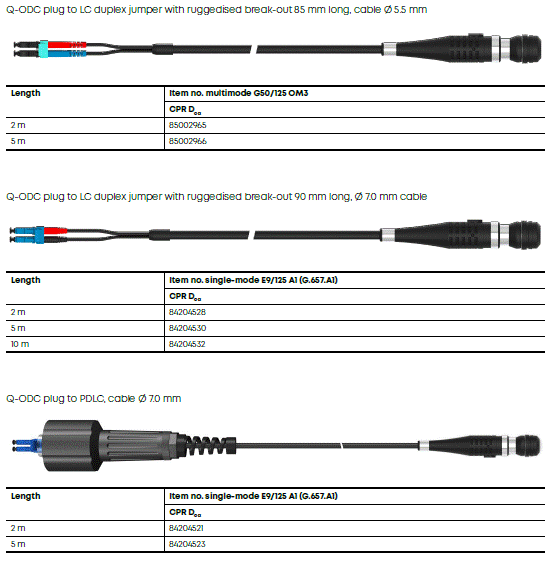

  • Adaptation to any RRH interface with Q-ODC plug jumpers
  • BTS side terminated with LC uniboot connectors
  • Ruggedised design with robust break-out cables
  • Robust pulling tube for cable lifting
  • Loose tube cables with 12 or 24 fibers, rodent protected and UV resistant
    and CPR compliant
  • Connectors numbered for easy channel identification
  • Easy and time-saving installation

• Physical Characteristics

  • 12, 24, 36 or 48 fiber
  • Q-ODC (RRH)
  • LC connectors (BTS)
  • Cable diameter 7mm (12/24 fiber) 9.6mm (36/48 fiber)
  • Outer diameter (Protection tube / pulling eye) 36mm (50mm / 48 fiber)



• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP67
  • Fire propagation / IEC 60332-1 and IEC 60332-3-25



• Compliance Approvals

  • CPR compliant / class Dca s1a, d0, a1

• Vælg længde:

HUBER+SUHNER MASTERLINE Ultimate

• Features
  • Pre-connectorised factory-sealed „plug & play“ fiber optic cabling
    system for up to 12 RRHs
  • Robust connector head with 6 or 12 Q-ODC sockets

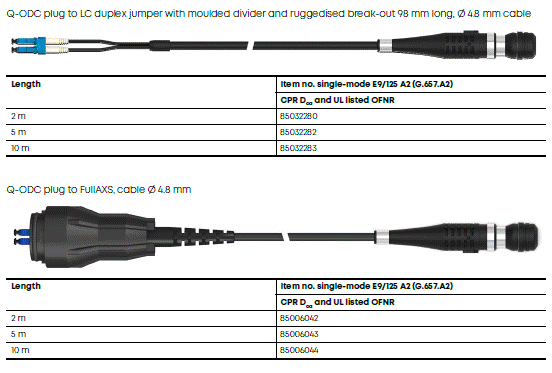

  • Connects the RRH with easy-to-install Q-ODC fiber optic jumpers
  • Integrated pulling eye for easy cable lifting
  • Loose tube cables with up to 24 fibers, rodent protected and UV resistant
    and CPR compliant
  • Connectors numbered for easy channel identification
  • Easy and time-saving installation

• Physical Characteristics

  • 12 or 24 fiber
  • Q-ODC (RRH)
  • LC connectors (BTS)
  • Cable diameter 7mm (12/24 fiber)
  • Outer diameter (Protection tube / BTS) 36mm



• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP67
  • Fire propagation / IEC 60332-1 and IEC 60332-3-24
  • UV resistant for outdoor use  / ISO 4892-3



• Compliance Approvals

  • CPR compliant / class Dca s1a, d0, a1
  • IK 07

• Vælg længde:

HUBER+SUHNER MASTERLINE Ultimate Micro

• Applications
  • Communication Market
  • Advertising pillar
  • Street light
  • Bus shelter
  • Department store
  • Industrial and Transport
  • Windfarm
  • Oil&Gas plattform
  • Energie transport
  • Transportation mobile and fixed

• Key features

  • Compact design allowing for various installation locations
    (e.g. wall and pole)
  • Up to 4 × Q-ODC-2 with 1 × Q-ODC-12 input or 1 × gland
  • Rugged design to withstand harshest environments
    (e.g. submersible)

• Physical Characteristics
• • 116 × 117 × 77 mm
  • UV stable poliycarbonate (cover), stainless steel (bracket)
  • 4 × Q-ODC-2
  • 6 × Q-ODC-2 Mini
  • (other sockets on request)

• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP68
  • halogen-free, yes (IEC 60754-2)
  • Fire propagation / IEC 60332-1 and IEC 60332-3-25



• Compliance Approvals

  • IK 07 (EN 62262)

• Vælg størrelse:

HUBER+SUHNER MASTERLINE Classic box

• Features
  • Ruggedised outdoor fiber distribution box
  • Supports up to 24 remote radio heads
  • Fitted with bend radius limiting mandrels
  • Suitable for mounting on poles, walls and tower legs with round-, L-,
    V- and -shape.
  • Easy to mount and install with pre-mounted brackets
  • Compatible with MASTERLINE Classic
  • Fully electrically isolated
  • Protective vent equalises pressure and prevents
    water condensation

• Physical Characteristics

  • 6 RRH (255 × 180 × 65 mm)
  • 12 / 18 RRH (240 × 240 × 132 mm)
  • 24 RRH (250 × 320 × 138 mm)
  • grey RAL 7035



• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP66/67
  • glass-filled polycarbonate, halogen-free, UV resistant
  • Fire propagation / IEC 60332-1 and IEC 60332-3-25



• Compliance Approvals

  • IK 07 (EN 62262)

• Vælg størrelse:

HUBER+SUHNER MASTERLINE 19" box

• Features
  • Space saving 19" rack installation
  • Cable entry from the front and back for up to 3 MASTERLINE
    cable systems
  • Pullout tray for easy access
  • Fitted with 6, 12, 18 or 24 LC duplex adapter
  • 3 mandrels for overlength management of the MASTERLINE
    cable system
  • Optional patchcord guide available

• Physical Characteristics

  • 482 × 209 × 43.5 mm (1 unit)
  • 6, 12, 18 or 24 LC duplex adapter blue
  • grey RAL 7035



• Vælg antal adapter:
