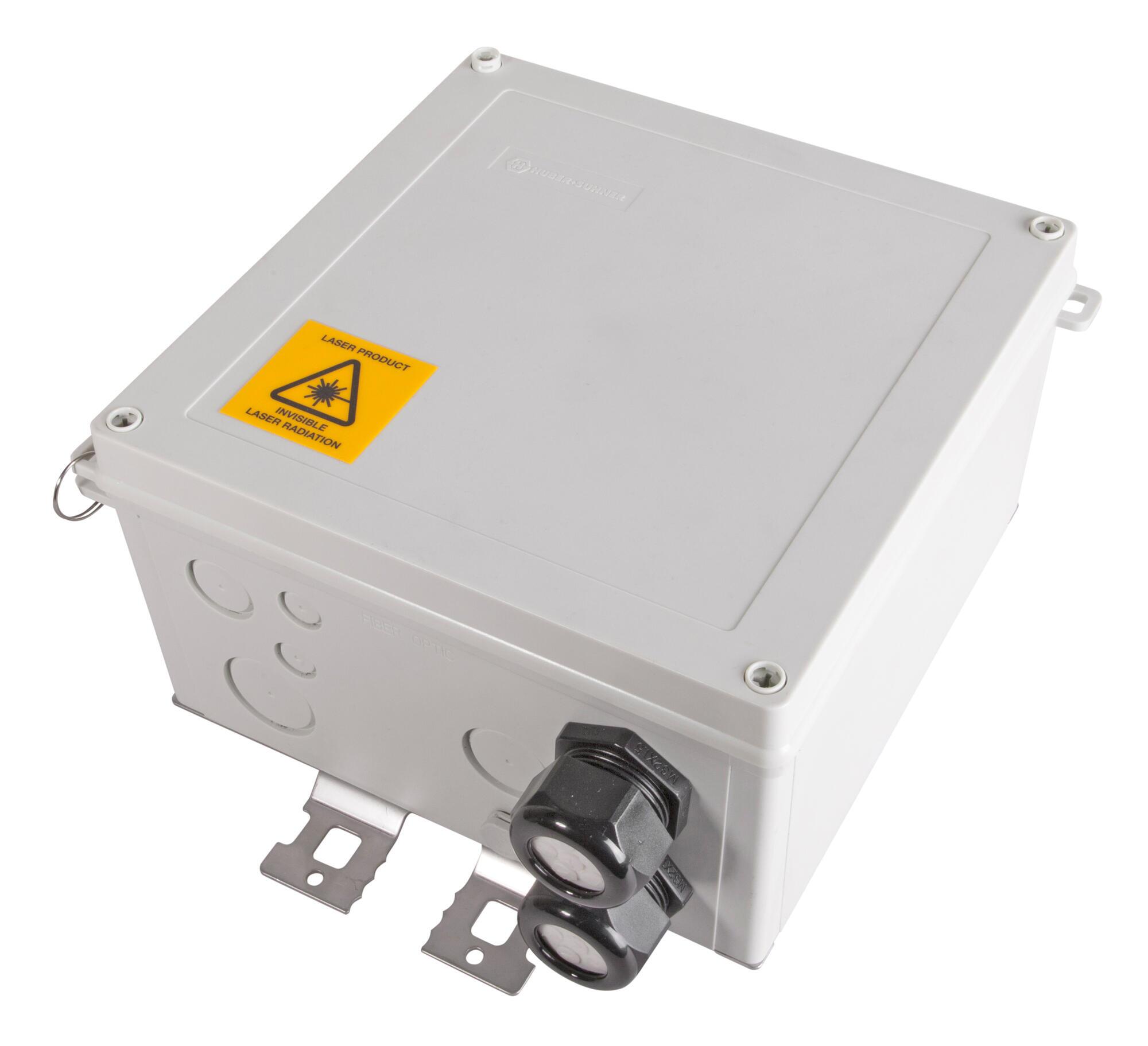

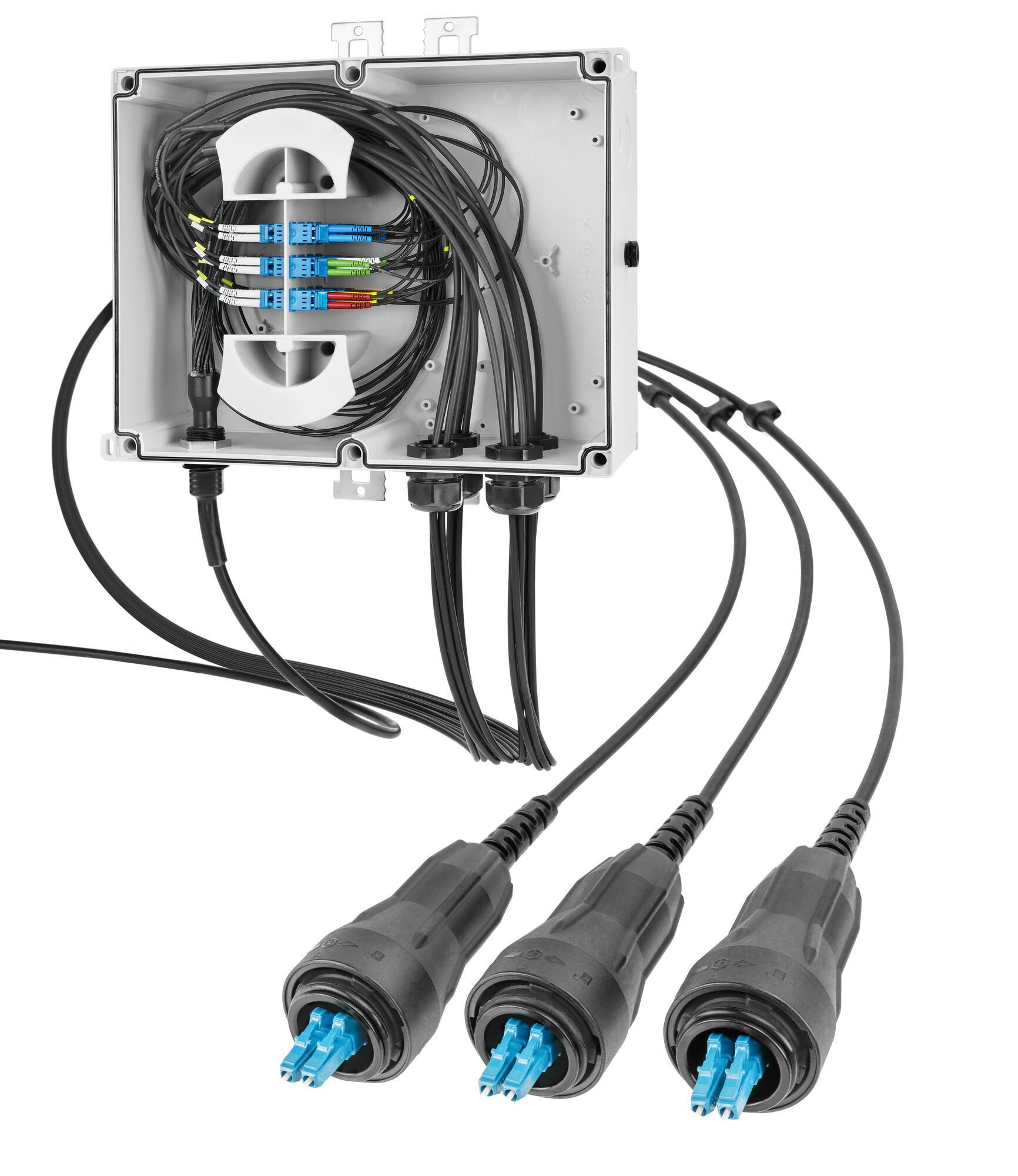

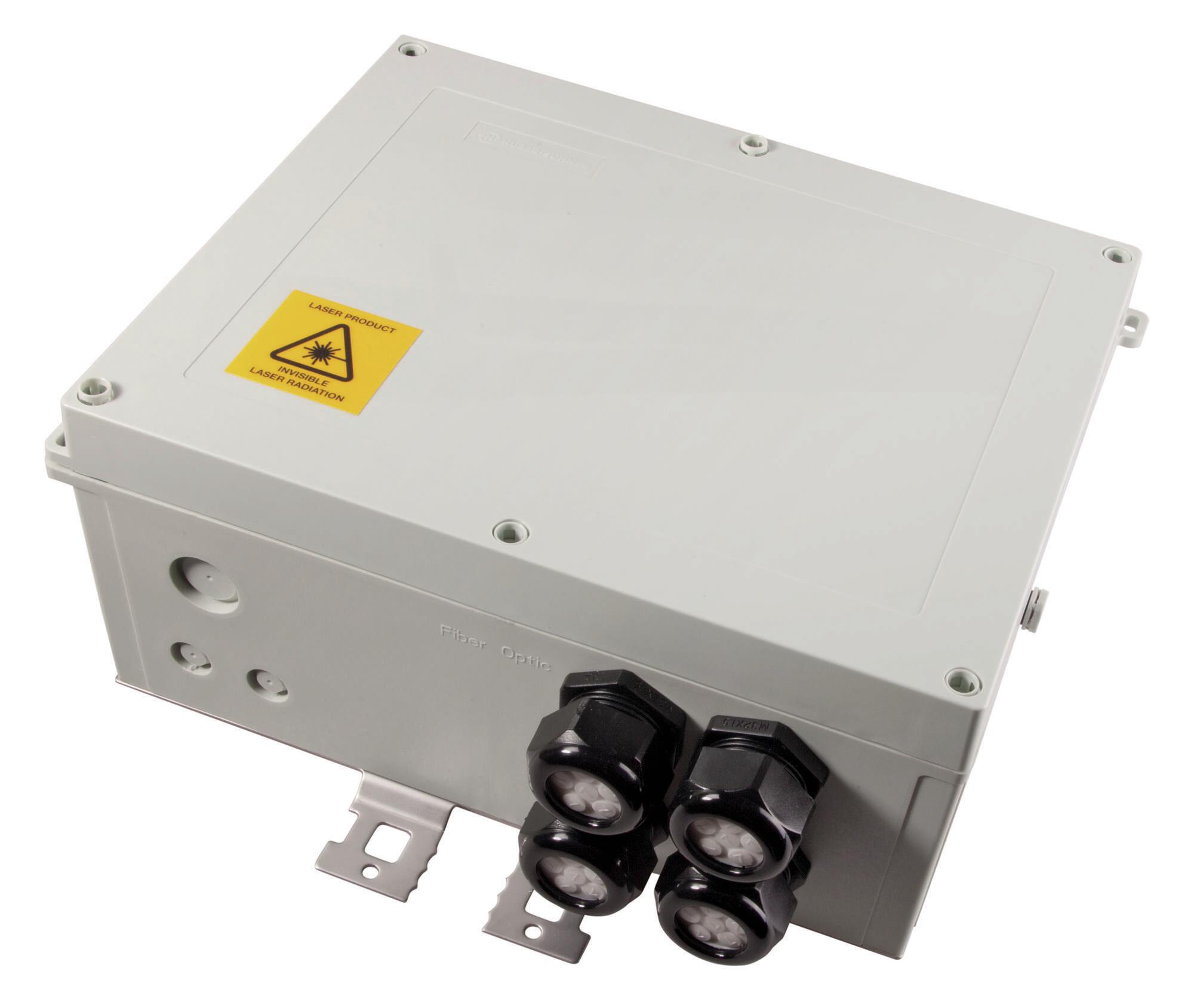

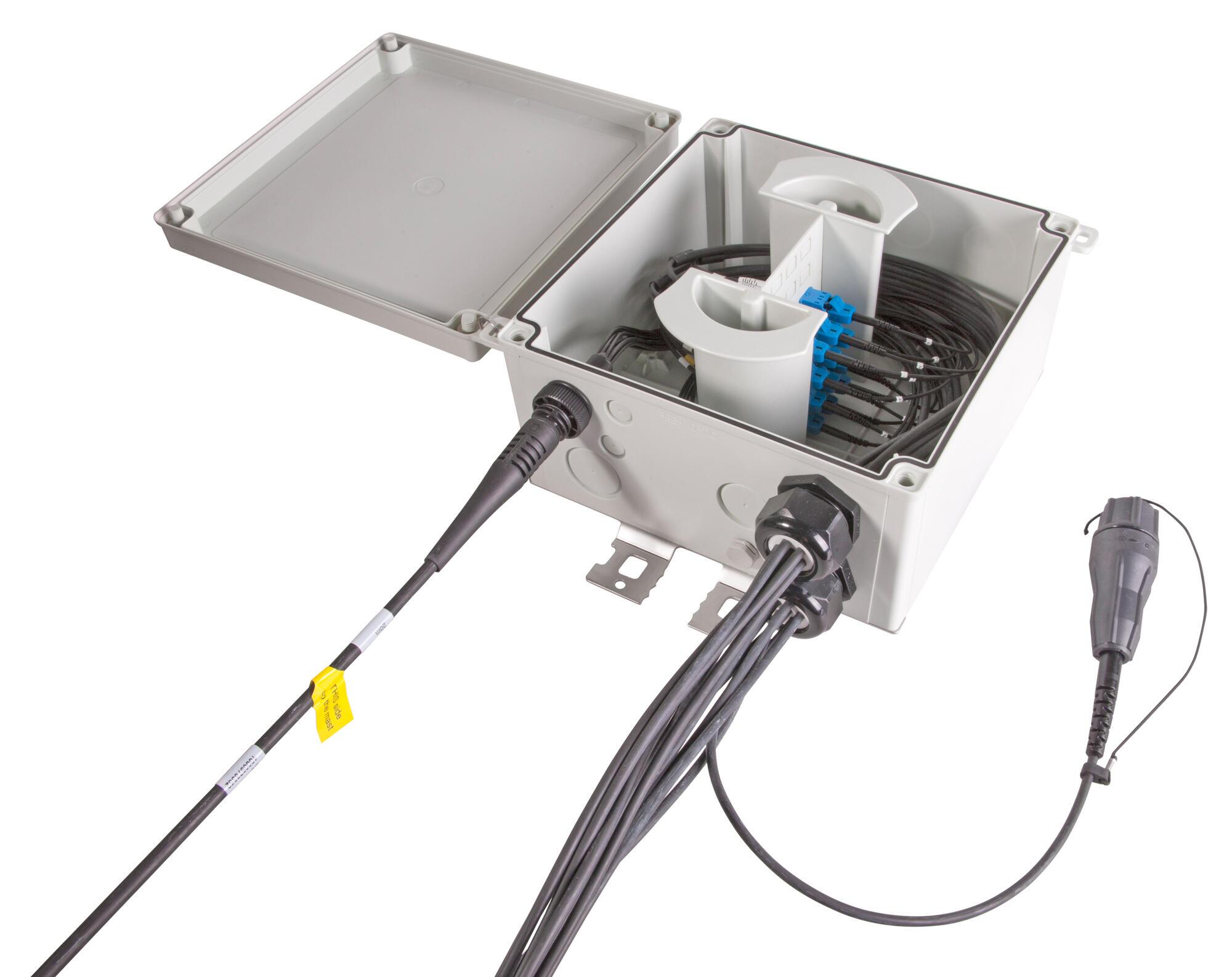

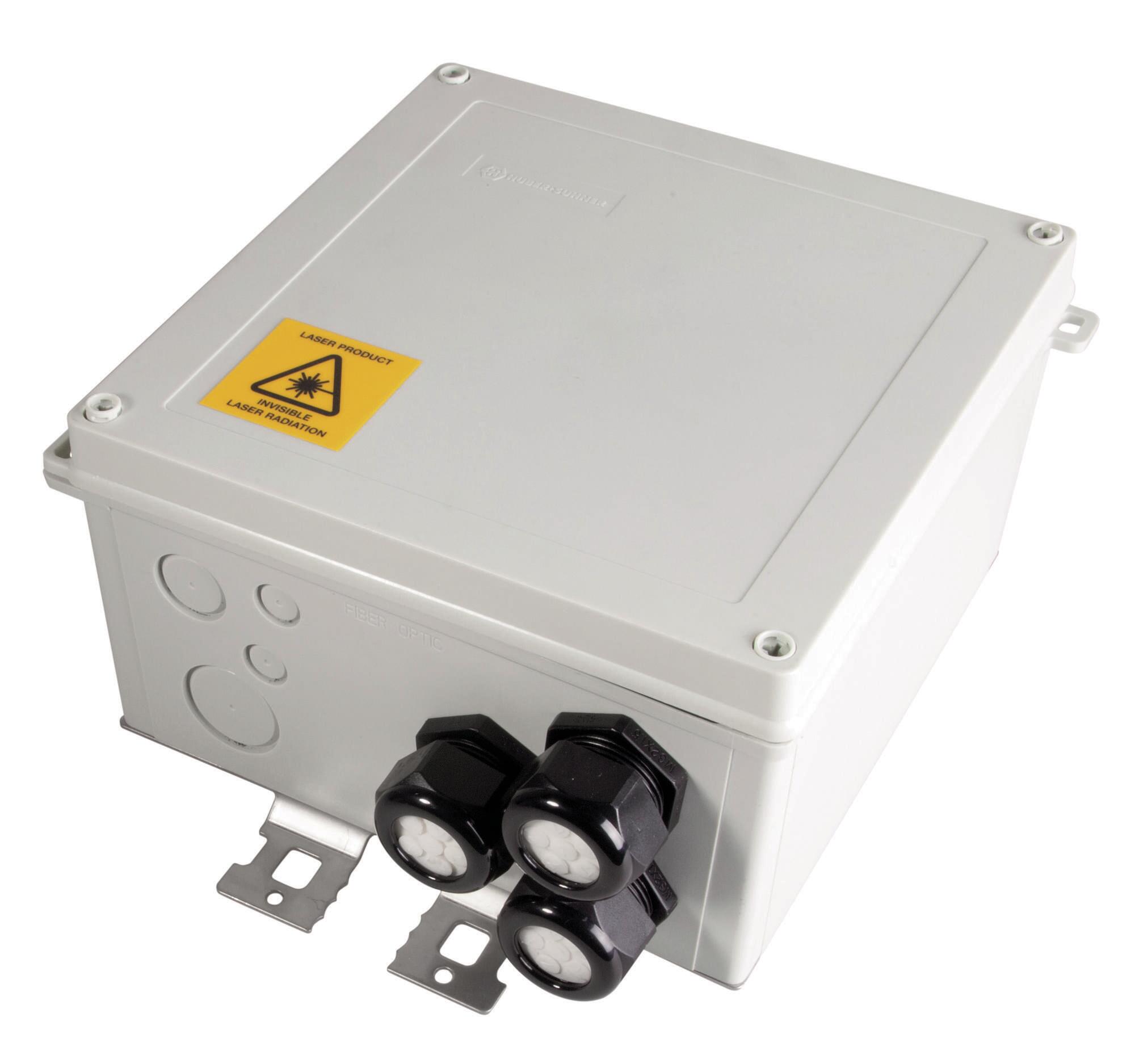

MASTERLINE Classic box

HUBER+SUHNER MASTERLINE Classic box

• Features
  • Ruggedised outdoor fiber distribution box
  • Supports up to 24 remote radio heads
  • Fitted with bend radius limiting mandrels
  • Suitable for mounting on poles, walls and tower legs with round-, L-,
    V- and -shape.
  • Easy to mount and install with pre-mounted brackets
  • Compatible with MASTERLINE Classic
  • Fully electrically isolated
  • Protective vent equalises pressure and prevents
    water condensation

• Physical Characteristics

  • 6 RRH (255 × 180 × 65 mm)
  • 12 / 18 RRH (240 × 240 × 132 mm)
  • 24 RRH (250 × 320 × 138 mm)
  • grey RAL 7035



• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP66/67
  • glass-filled polycarbonate, halogen-free, UV resistant
  • Fire propagation / IEC 60332-1 and IEC 60332-3-25



• Compliance Approvals

  • IK 07 (EN 62262)
