MASTERLINE Ultimate

HUBER+SUHNER MASTERLINE Ultimate

• Features
  • Pre-connectorised factory-sealed „plug & play“ fiber optic cabling
    system for up to 12 RRHs

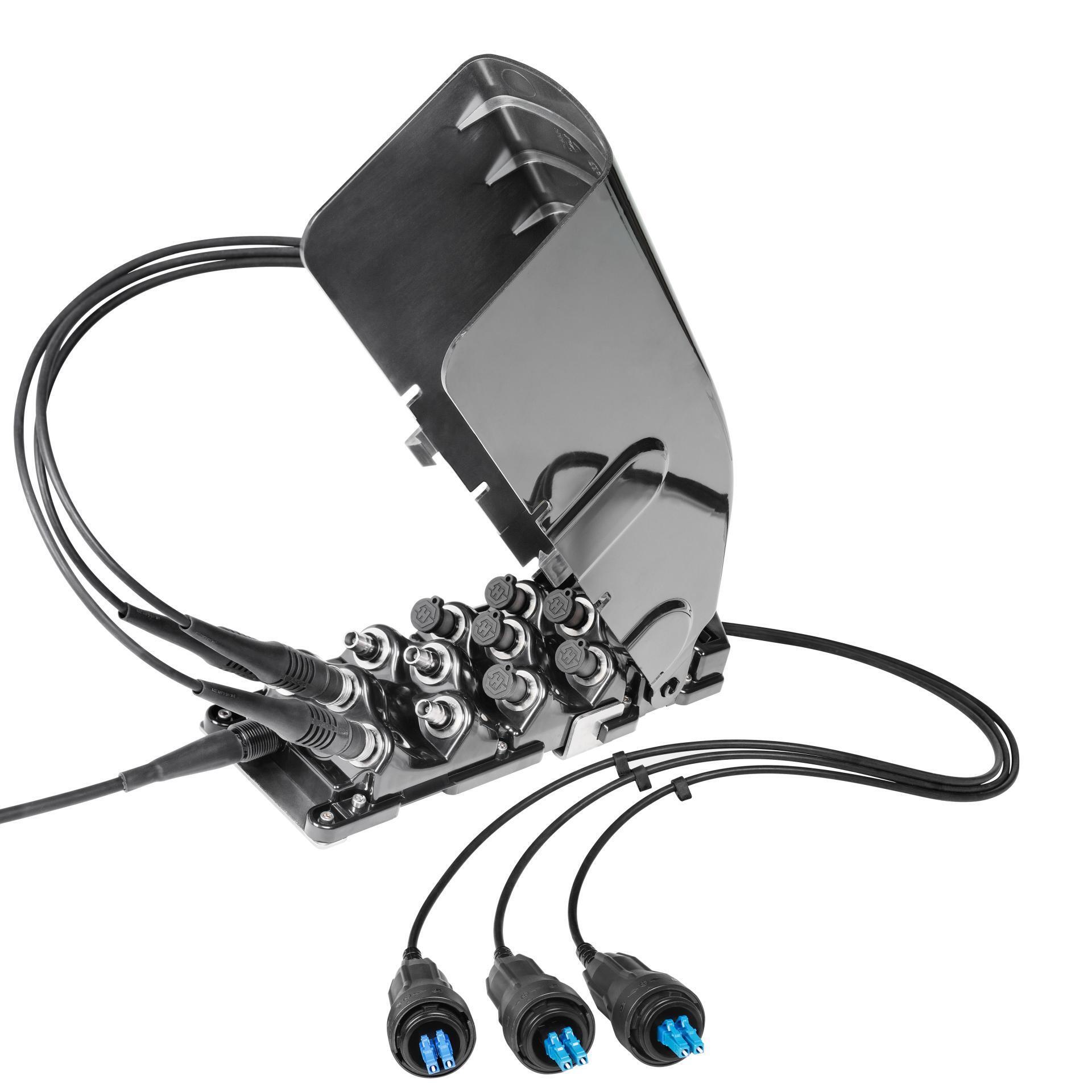

  • Robust connector head with 6 or 12 Q-ODC sockets

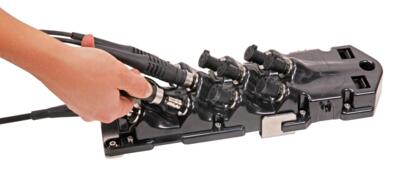

  • Connects the RRH with easy-to-install Q-ODC fiber optic jumpers
  • Integrated pulling eye for easy cable lifting
  • Loose tube cables with up to 24 fibers, rodent protected and UV resistant
    and CPR compliant
  • Connectors numbered for easy channel identification

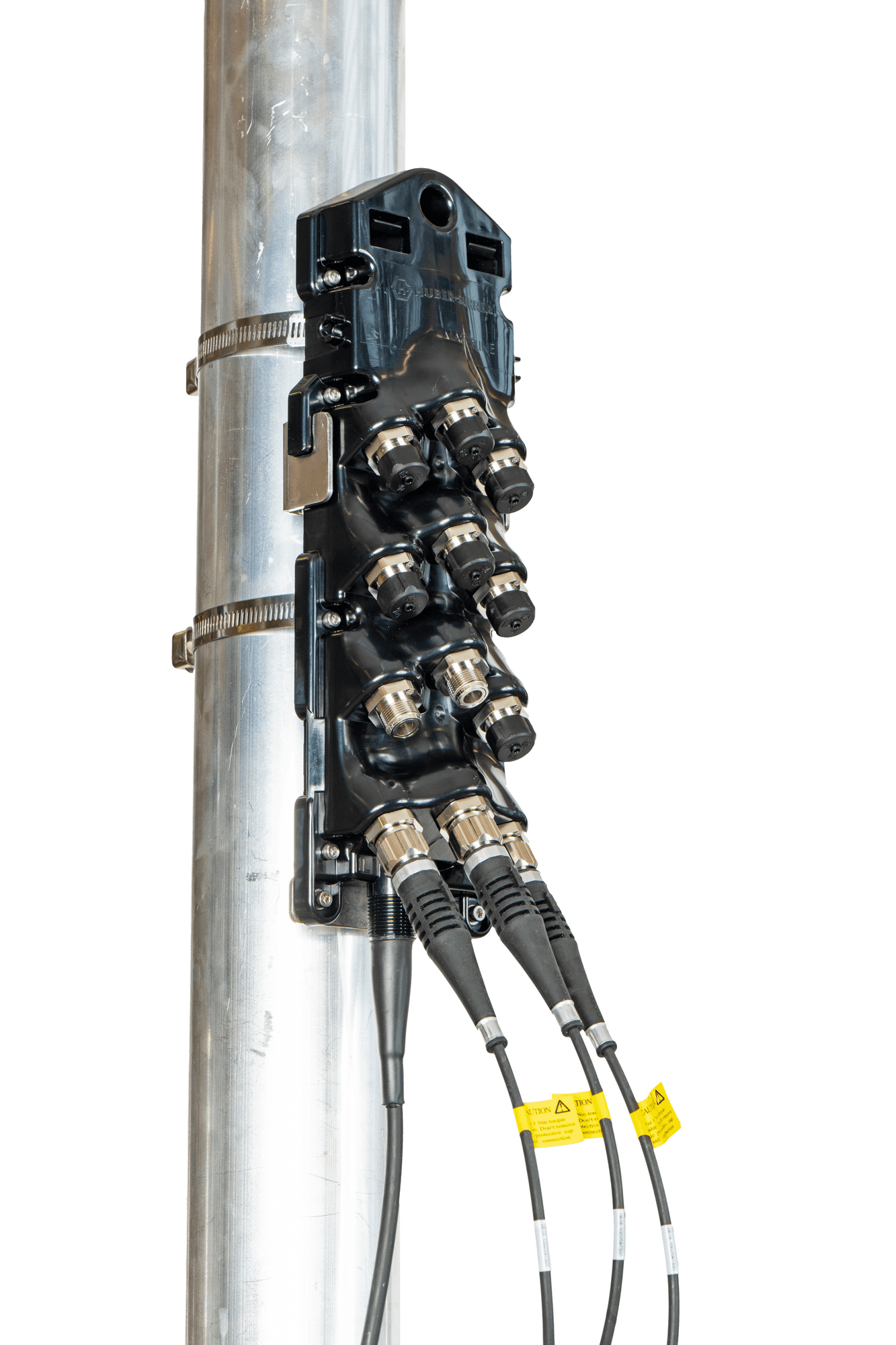

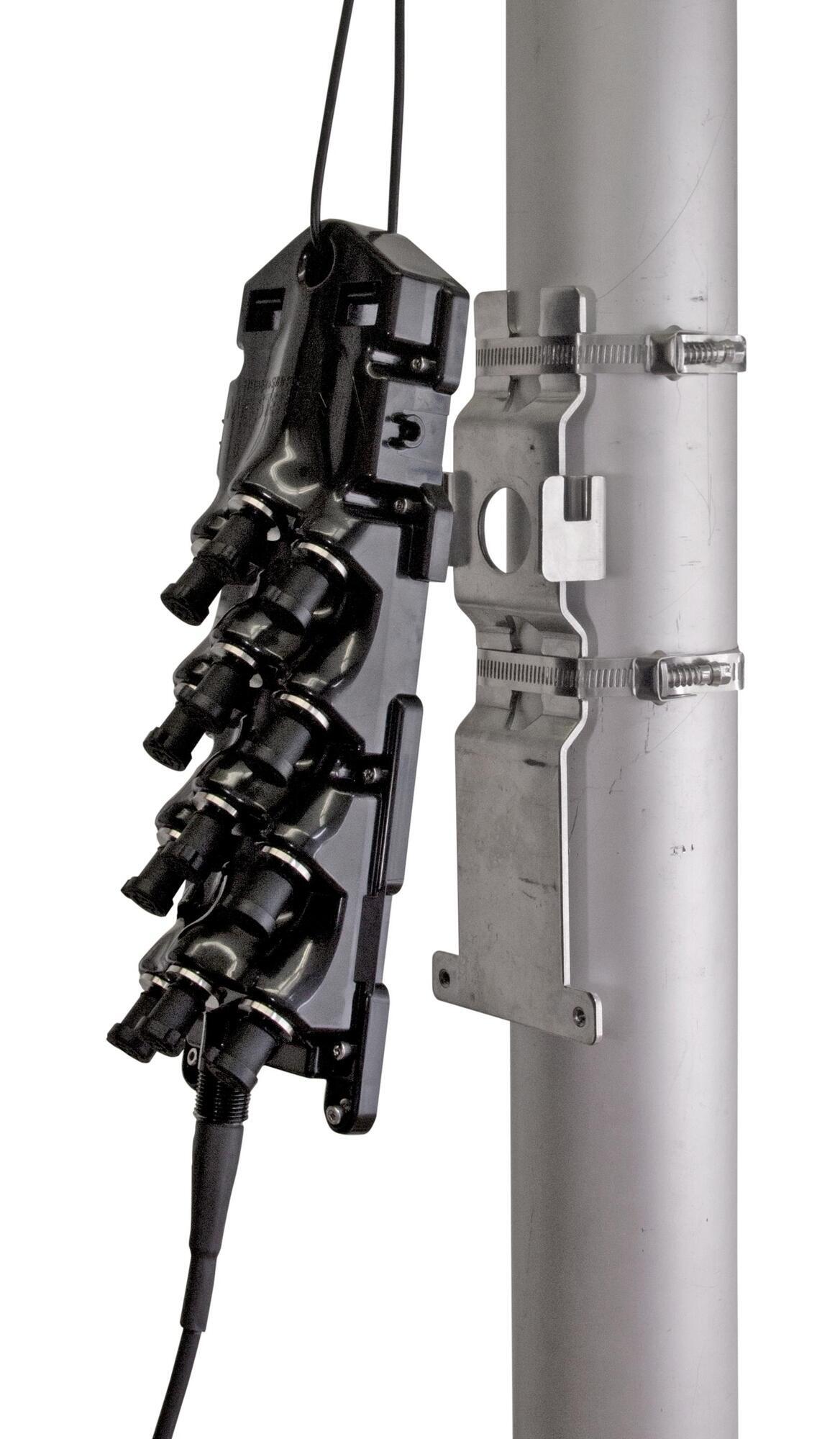

  • Easy and time-saving installation

• Physical Characteristics

  • 12 or 24 fiber
  • Q-ODC (RRH)
  • LC connectors (BTS)
  • Cable diameter 7mm (12/24 fiber)
  • Outer diameter (Protection tube / BTS) 36mm



• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP67
  • Fire propagation / IEC 60332-1 and IEC 60332-3-24
  • UV resistant for outdoor use  / ISO 4892-3



• Compliance Approvals

  • CPR compliant / class Dca s1a, d0, a1
  • IK 07
