MASTERLINE Ultimate Micro

HUBER+SUHNER MASTERLINE Ultimate Micro

• Applications
  • Communication Market
  • Advertising pillar
  • Street light
  • Bus shelter
  • Department store
  • Industrial and Transport
  • Windfarm
  • Oil&Gas plattform
  • Energie transport
  • Transportation mobile and fixed

• Key features

  • Compact design allowing for various installation locations
    (e.g. wall and pole)

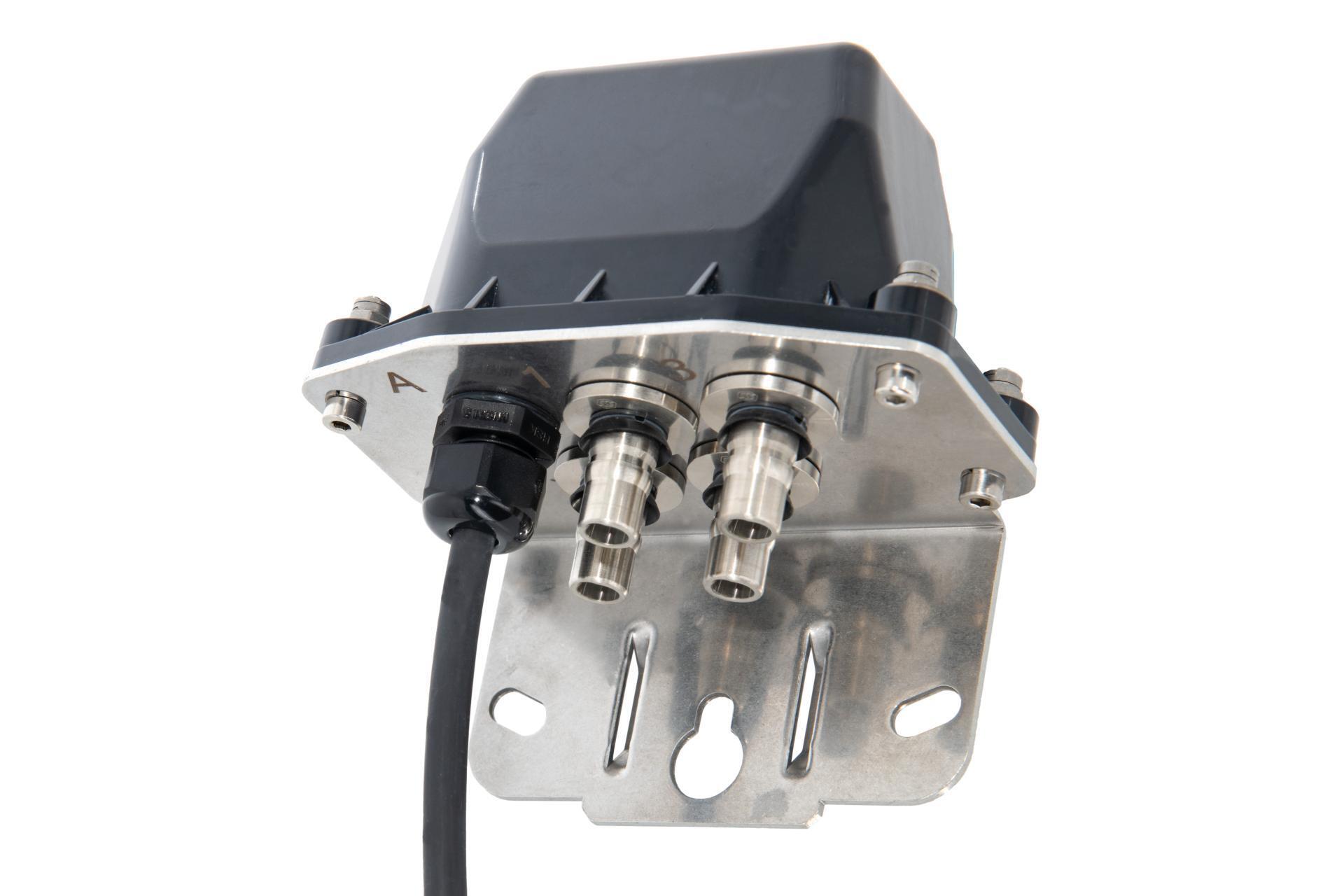

  • Up to 4 × Q-ODC-2 with 1 × Q-ODC-12 input or 1 × gland
  • Rugged design to withstand harshest environments
    (e.g. submersible)

• Physical Characteristics
• • 116 × 117 × 77 mm
  • UV stable poliycarbonate (cover), stainless steel (bracket)

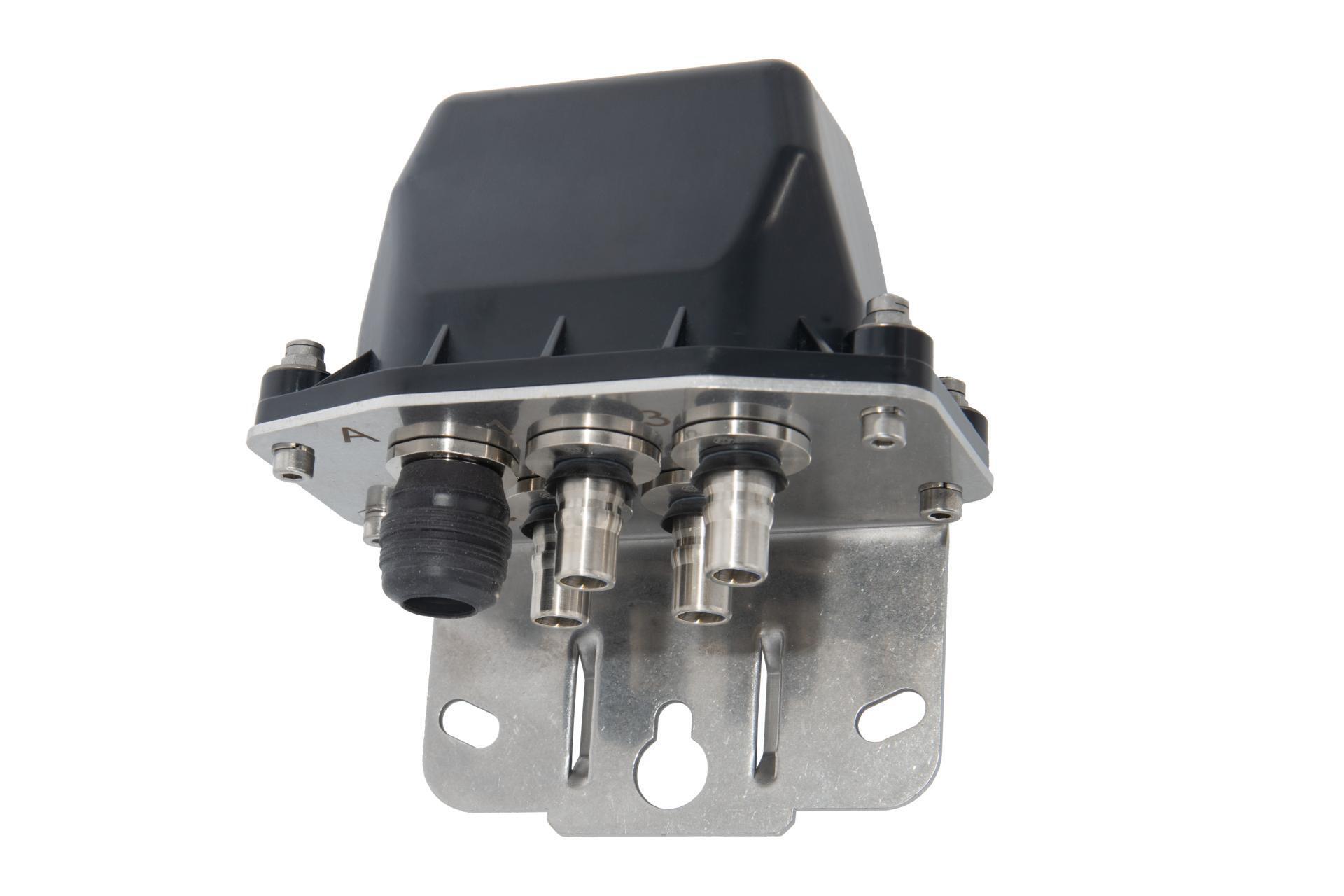

  • 4 × Q-ODC-2

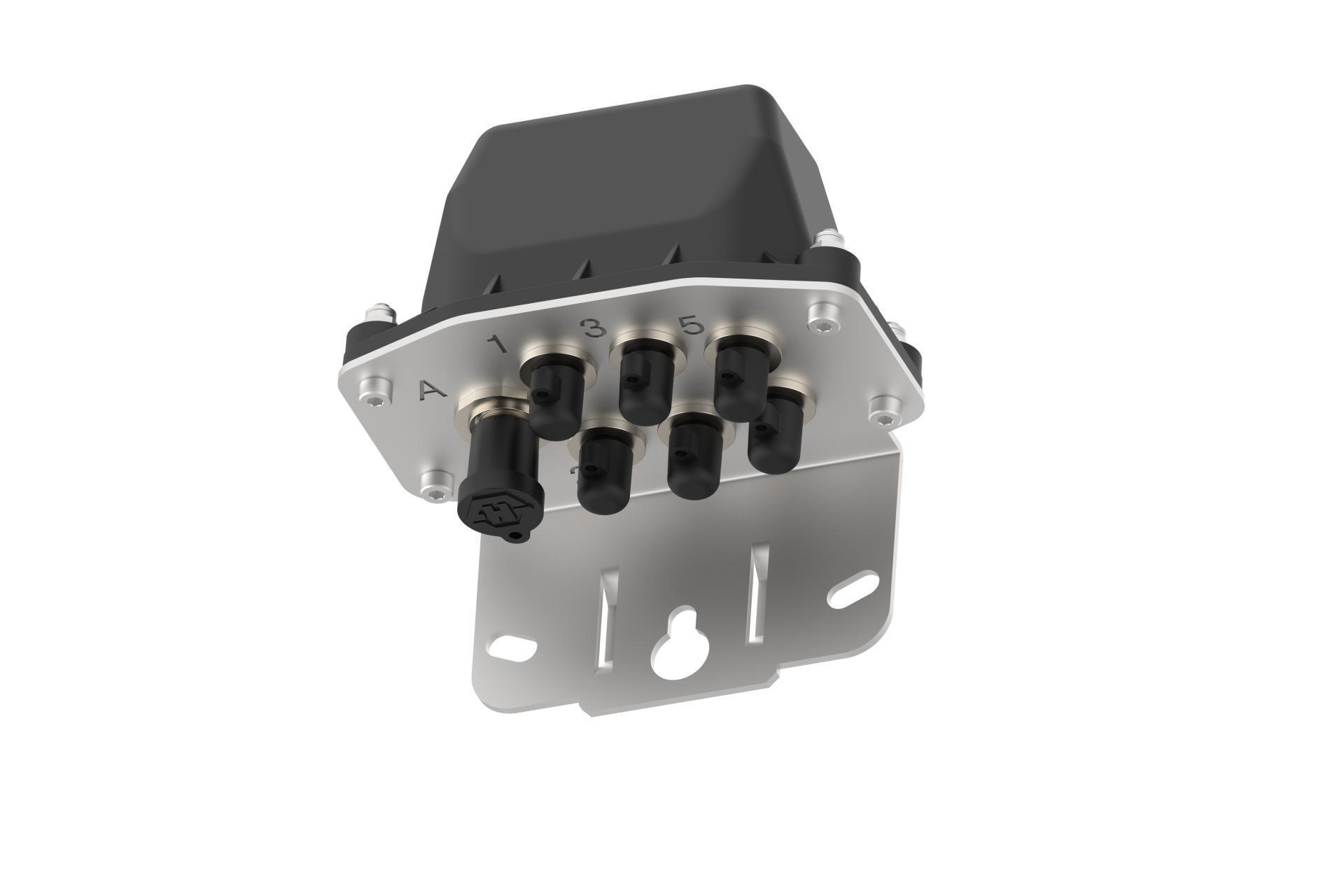

  • 6 × Q-ODC-2 Mini
  • (other sockets on request)

• Environmental Characteristics

  • Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
  • IP68
  • halogen-free, yes (IEC 60754-2)
  • Fire propagation / IEC 60332-1 and IEC 60332-3-25



• Compliance Approvals

  • IK 07 (EN 62262)
