MASTERLINE Classic

Ring for pris
3411 1224

HUBER+SUHNER MASTERLINE Classic

Features
- Pre-assembled „plug & play“ cabling system

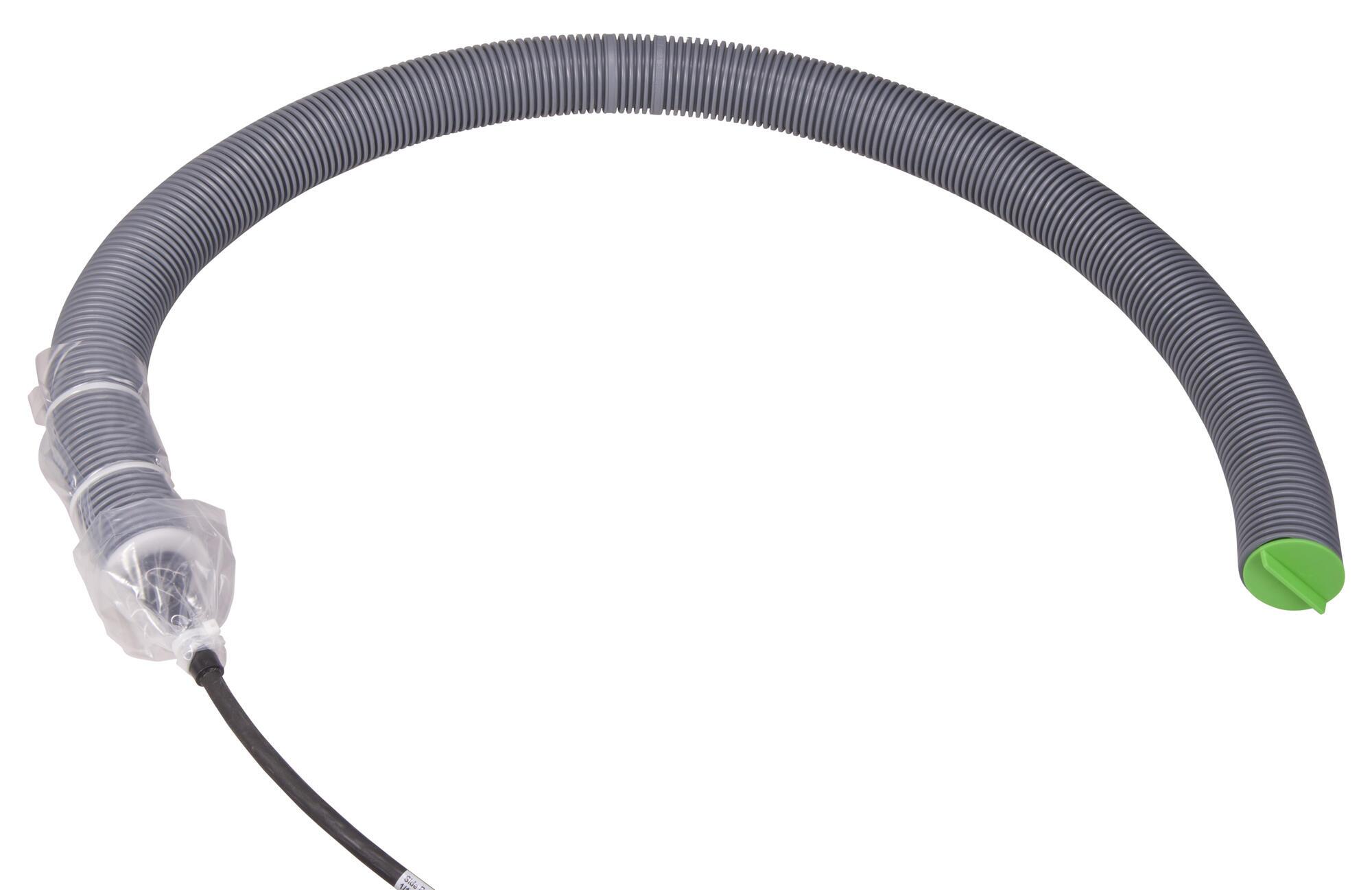

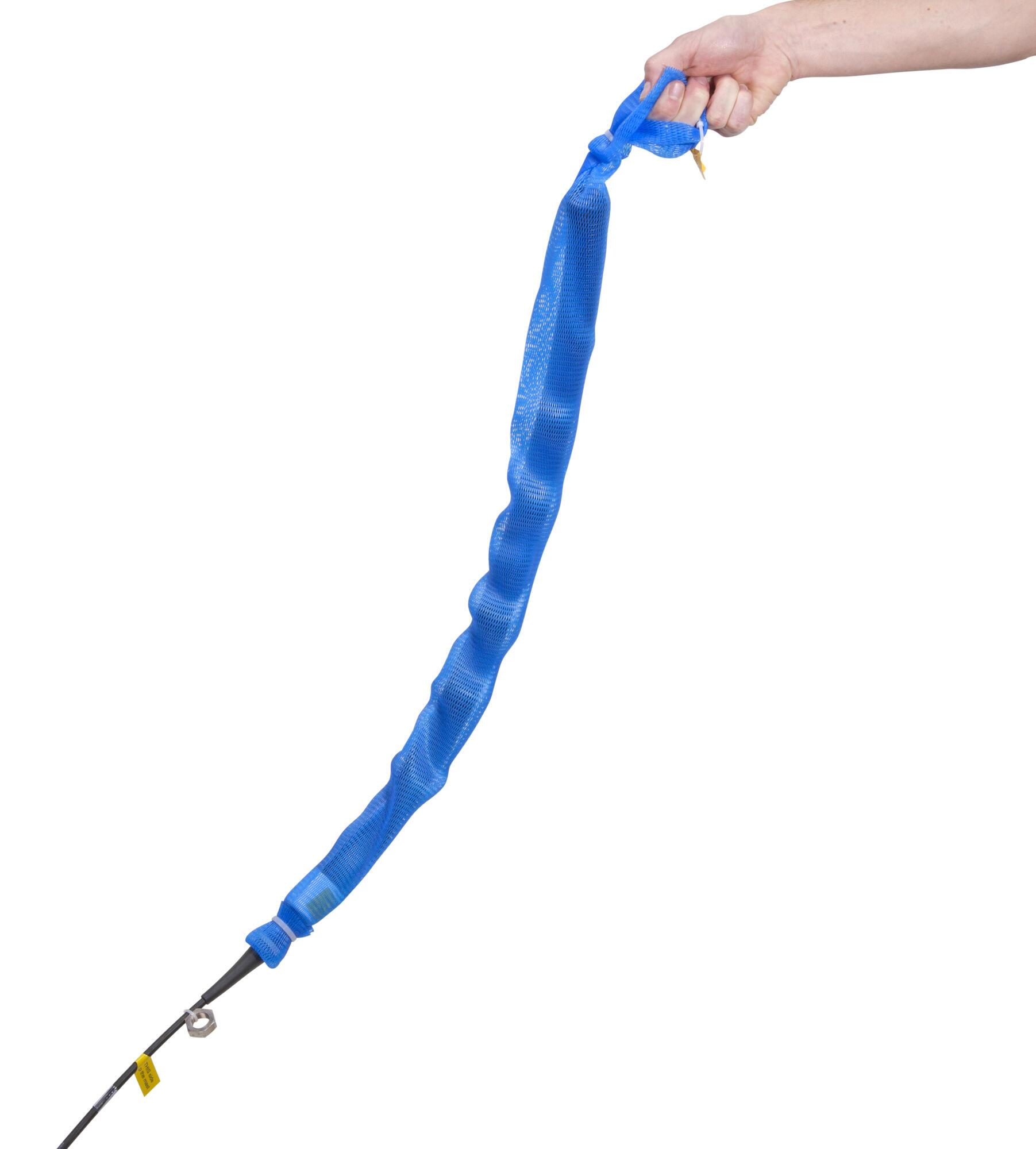

- Ruggedised design with robust pulling tube Outdoor and indoor with high flame resistance
- Loose tube cables with up to 48 fibers, rodent protected and UV resistant and CPR compliant

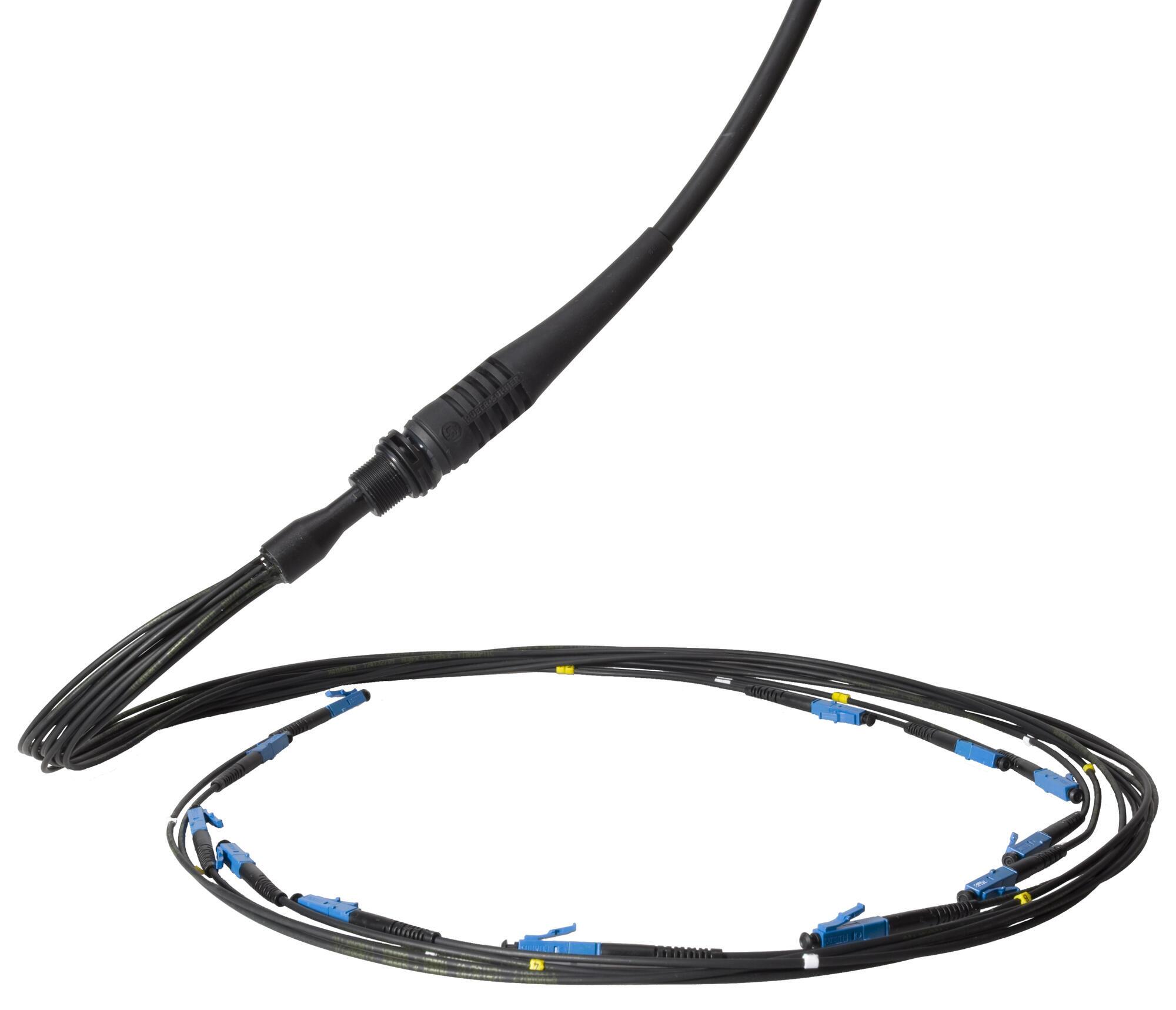

- Both sides terminated with LC uniboot connectors

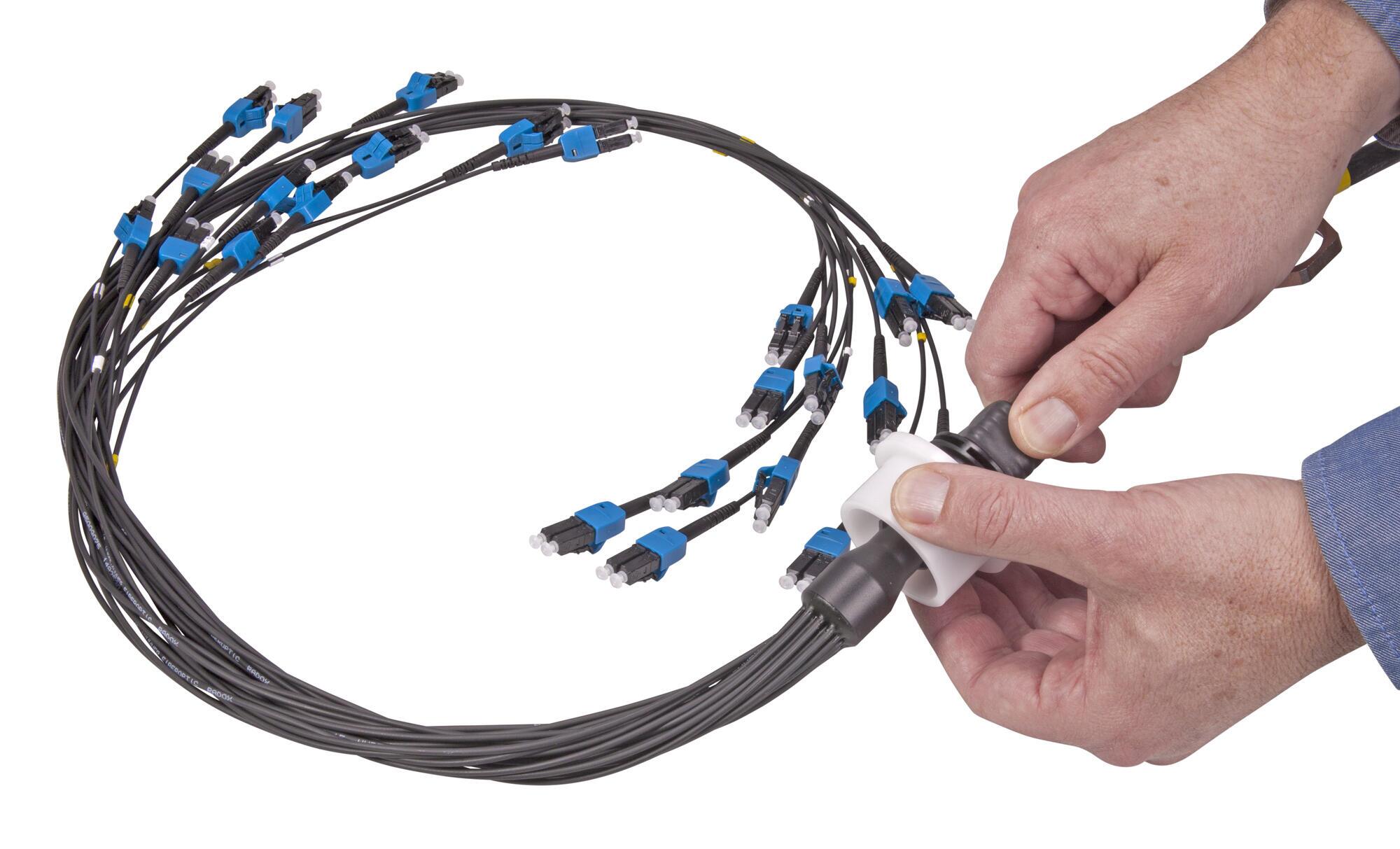

- Breakouts numbered for easy channel identification
- Easy and time-saving installation
- Each system factory tested

Physical Characteristics
- 12, 24, 36 or 48 fiber
- LC connectors
- Cable diameter 7mm (12/24 fiber) 9.6mm (36/48 fiber)
- Outer diameter (Protection tube / pulling eye) 36mm (50mm / 48 fiber)

Environmental Characteristics
- Temperature Range, Operating: -40 to 75°C / Installation -10 to 50°C
- IP67, when installed with FTTA box
- Halogen-free / IEC 60754-1
- Fire propagation / IEC 60332-1 and IEC 60332-3-25

:: 12 * SM 9/125 20 m

:: 12 * SM 9/125 30 m

:: 12 * SM 9/125 40 m

:: 12 * SM 9/125 50 m

:: 12 * SM 9/125 60 m

:: 12 * SM 9/125 70 m

:: 12 * SM 9/125 80 m

:: 12 * SM 9/125 90 m

:: 12 * SM 9/125 - 100 m

:: 12 * SM 9/125 - 125m

:: 24 * SM 9/125 -20 m

:: 24 * SM 9/125 - 30 m

:: 24 * SM 9/125 - 40 m

:: 24 * SM 9/125 - 100 m

:: 24 * SM 9/125 - 50 m

:: 24 * SM 9/125 - 60 m

:: 24 * SM 9/125 - 70 m

:: 24 * SM 9/125 - 80 m

:: 24 * SM 9/125 - 90 m

:: 24 * SM 9/125 - 125 m

:: 36 * SM 9/125 - 20 m

:: 36 * SM 9/125 - 30 m

:: 36 * SM 9/125 - 40 m

:: 36 * SM 9/125 - 50 m

:: 36 * SM 9/125 - 60 m

:: 36 * SM 9/125 - 70 m

:: 36 * SM 9/125 - 80 m

:: 36 * SM 9/125 - 90 m

:: 36 * SM 9/125 - 100 m

:: 36 * SM 9/125 - 125 m

:: 48 * SM 9/125 20 m

:: 48 * SM 9/125 30 m

:: 48 * SM 9/125 40 m

:: 48 * SM 9/125 50 m

:: 48 * SM 9/125 60 m

:: 48 * SM 9/125 70 m

:: 48 * SM 9/125 80 m

:: 48 * SM 9/125 90 m

:: 48 * SM 9/125 100 m

:: 48 * SM 9/125 125 m
